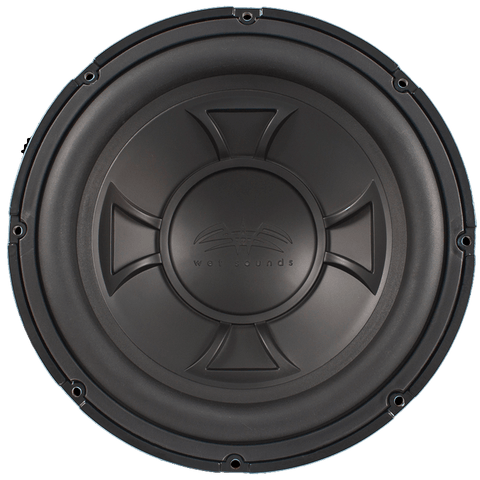

12 inch SPL Marine Subwoofer. The REVO12-XXX is the one of the only SPL marine woofers in the world. Advanced acoustical engineering and high-end components make the REVO12-XXX the subwoofer of choice for those looking for extreme bass. Cutting-edge computer aided design and full finite element analysis give you a woofer built for extreme use. Weighing in at over 30 pounds! With the REVO12-XXX, not only do you get killer bass but also some additional ballast! Powder Coated gloss black cast aluminum frame, high stiffness matte black polypropylene/carbon fiber/glass fiber cone, heavy duty magnetic system, high roll Santoprene thermoformed rubber surround, fiberglass former, 3" dual voice coil, gold plated screw down binding posts, integrated multi-part cooling system with t yoke heat sink and combination peripheral/pole piece venting ensures high power and low voice coil temperatures.
- Rubber: High Role Rubber Surround
- Aluminum: Powder Coated Cast Aluminum Frame
- Terminals: Gold Plated Screw Down Binding Posts
- Magnet: Heavy Duty Magnetic System
Description
- Impedance: Dual 2 ohms
- RMS Watts: 1000
- PEAK Watts: 2000
- Frequency Response: 25Hz to 500Hz
- Sensitivity: 90 db at 1watt/1 meter
Size & Weight
- Box Specifications: Optimized for 1.2 cu ft sealed enclosure or 1.8 cu ft ported enclosure (Optimum: Tuned at 41 Hz)
- Weight: 33.4 lbs (15.14kg)
- Diameter: 12.4 inches (314.96mm)
- Mounting Depth: 6.53 inches (165.86mm)
- Hole Cut Out: 11.26 inches (286.00mm)
Note: All specifications are for each REVO12-XXX
